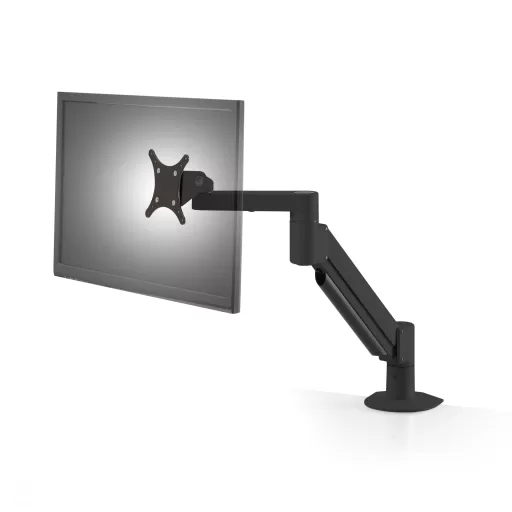

The Titan Single Monitor Arm suspends your flat panel above your desk, allowing you to quickly reposition the monitor with just one hand. Reclaim your desktop and work in greater ergonomic comfort. This monitor arm is incredibly easy to use and is as easy to install. Designed to fit any monitor with standard VESA mounting holes, the arm can be mounted with a simple 3/8" hole or clamped to the surface.
Item Numbers: 95509, 95512, 95522Titan Single Monitor Arms
- Pneumatically-adjustable arm “floats” monitor above desktop and provides instant height adjustment
- Includes cable management system-cables concealed in arm
- 6 mounting options (clamp, thru-desk, wall, grommet hole, side bolt, reverse wall)
95534 - Titan USB Kit
95535 - Titan Base Extension
95547B - Universal Dual Monitor Cross Member
- Available in 3 weight capacities:
95512 - rated for “Light-Duty” monitors weighing from 2 - 13 lb
95522 - rated for “Medium-Duty” monitors weighing from 7.5 - 25 lb
95509 - rated for “Heavy-Duty” monitors weighing from 12 - 31 lb
95509 - rated for “Heavy-Duty” monitors weighing from 12 - 31 lb
Note: The 95509 "Heavy-Duty" arm is not intended for use with small, light-weight monitors. The monitor weight acts as a counterbalance to the arm. This arm is intended only for monitors weighing between 12 and 31 lb.
- 16" of vertical range (+/- 8" from horizontal)
- Pneumatically-adjustable
- Extends up to 24"
- Rotates 360-degrees at 3 joints
- Monitor tilt mechanism can tilt over 200-degrees
- Monitor can pivot 90-degrees from landscape to portrait
- Folds up into just 3" of space
- Compatible with all VESA® monitors – includes 75mm and 100mm VESA® adapters
