• Product ships fully assembled

Connect10 Locker with USB-C PD Charging - Prewired

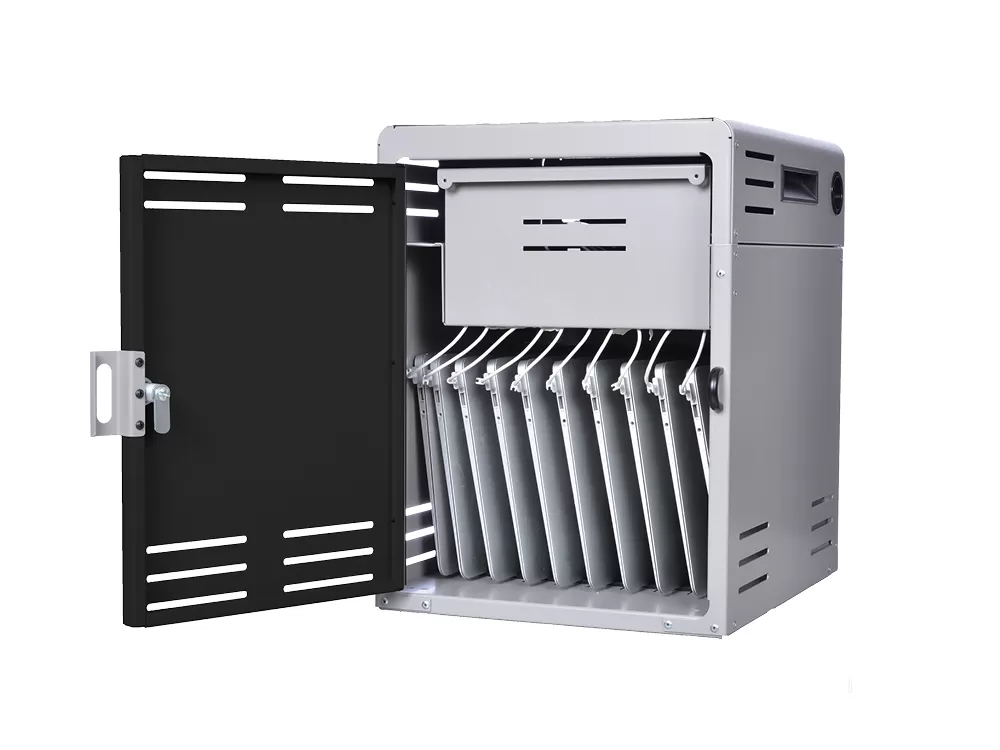

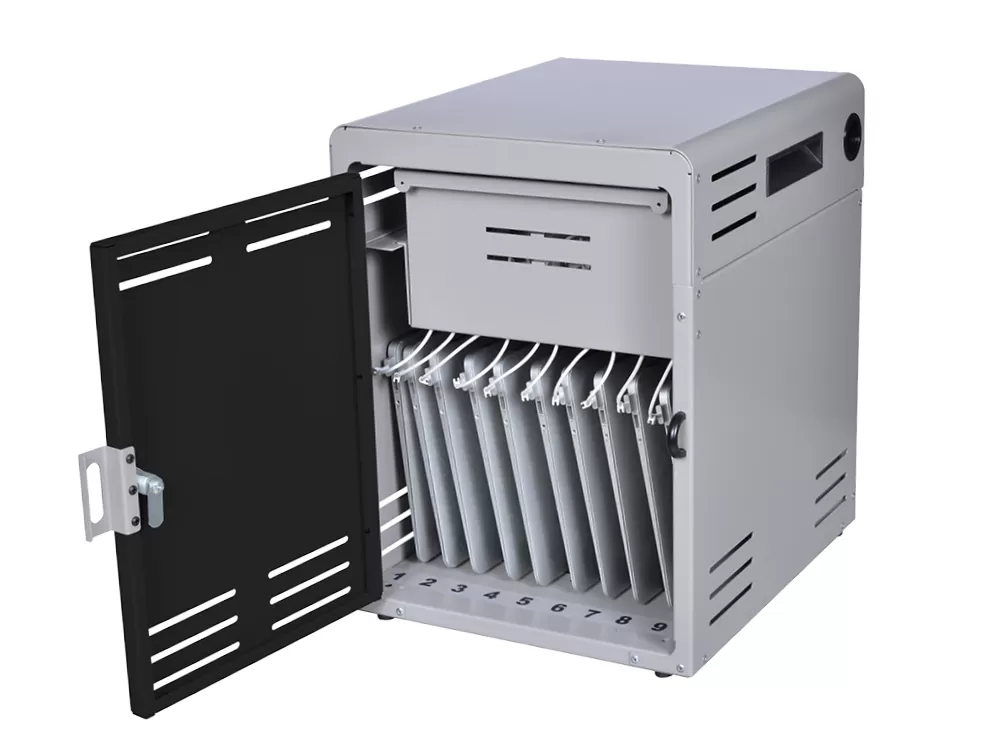

Arriving fully wired and ready to charge your devices, the Connect10 Locker will make setup a breeze. It is equipped with 10 USB-C PD charging bays (accommodates up to 14" devices), flexible dividers and overhead wire management to keep your laptops and Chromebooks charged, stored and easily accessible to even the smallest users. The overhead wire management system includes a pullout storage drawer to aid in wiring integration by allowing the charging plugs to hang directly in front of each device for quick connections.  The keyed lock plus integrated padlock hasp on the door, heavy gauge steel construction and surface-mounting all provide additional layers of security. Make charging simple with our prewired, Connect10 Locker.

Item Numbers: 55489-USBC
  • Prewired with USB-C PD chargers to make integration quick and easy for instructors
  • Stores and charges up to 10 tablets, Chromebooks™, or notebooks
  • 1.25”W x 14.39”D x 10.122”H universal storage bay (numbered 1-10)

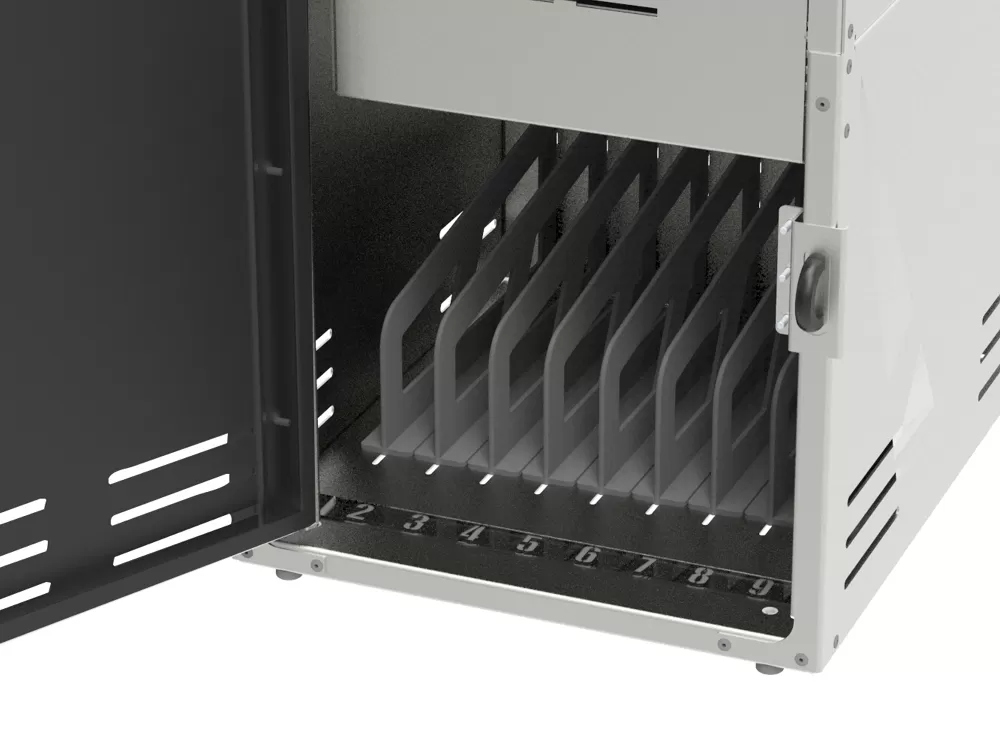

  • Durable ABS plastic dividers (dividers are removable to provide storage space for thicker devices)
  • Single point lock, keyed, heavy gauge steel door provides security
  • Integrated padlock hasp in the hinged door provides an additional level of security and the ability to use your padlock of choice (not included), or secure the unit to a wall
  • Unit can be mounted to a worksurface or wall for additional security (optional hardware required)

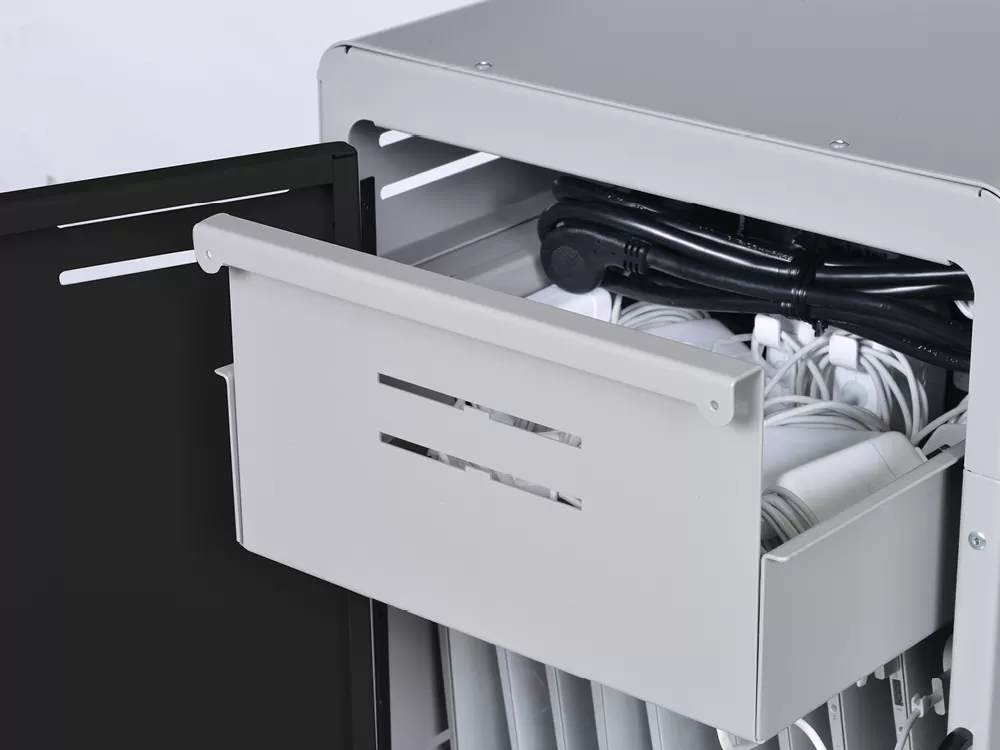

  • Power drawer provides easy-access to electrical power while keeping line voltage, wiring, and cords away from students
  • Superior, all-metal overhead cord management system keeps charge cords organized above each storage bay
  • Ventilated door and side panels keep devices cool, preventing overheating, and extending device life
  • One 10-outlet, surge-suppressed power strip
  • Side grommets placed for effective cord management
  • Locker ships fully-assembled for quick, simple integration and deployment
  • Durable powder coated steel chassis provides a long lasting finish
  • Capacity: 10 devices
  • Overall dimensions: 13.25"W x 17.06"D x 17.75"H
  • Bay capacity: 1.25”W x 14.39”D x 10.122”H
  • Power tray: 10.715"W x 13.5"D x 6.193"H
  • Power strip:
    Dimensions: 11.1" x 5.7" x 1.29"
    (10) outlets (widely spaced)
    Integrated safety covers
    120V AC / 15A
    Surge protection 2880 joules with LED "protected" indicator
    ON / OFF switch
    Resettable 15A circuit breaker
    EMI/RFI filtration
    6’ [183 cm] nominal 14ga, 3-wire power cord
    Right angle power plug
    Keyhole mounting slots
    ETL Listed
  • Shipping weight:
44 lb (with power)
42 lb (no power)

USB-C PD Charger Specifications:

  • Model: HA712
  • Input: 100-240V ~ 50/60Hz 1.5A
  • Output (USB-C PD): 5V~3A 9V~3A 12V~3A 15V~3A 20V~3.25A
  • Dimensions: 1.97 x 1.97 x 1.10 (50mm x 50mm x 28mm)
  • Net Weight: 3.42 oz (97 g)

See Product Spec Document For More Detailed Information.
