Instructor Media Console (standard configurations)

Description:

A modular system offers the greatest flexibility in designing teacher workstations. Spectrum’s versatile IMC teaching desk offers combinations for many different solutions. Just as every business and school environment has different requirements, the IMC can be reconfigured accordingly to help manage many needs. Even special ergonomic conditions – sit or stand – are addressed with two standard worksurface heights. Choose from standard and optional laminates to achieve the look you want.

The IMC system offers even greater flexibility with rack rail and rack mount capabilities. Use the Equipment Rack component for shelves, storage, and audio visual options. Control the sound in your room or use a locking rack mount file cabinet to secure needed documents.

Define the needs of your room and then configure your modular IMC furniture to support those needs.

Configurations shown below are shown with customer supplied electronics and additional accessories.

Preconfigured-

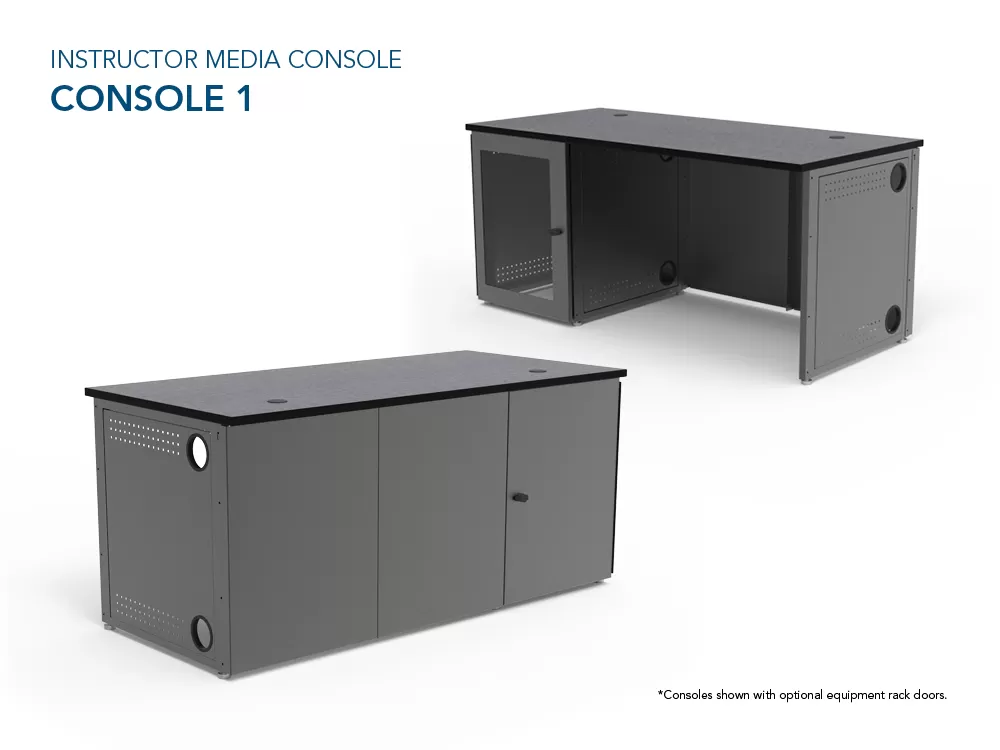

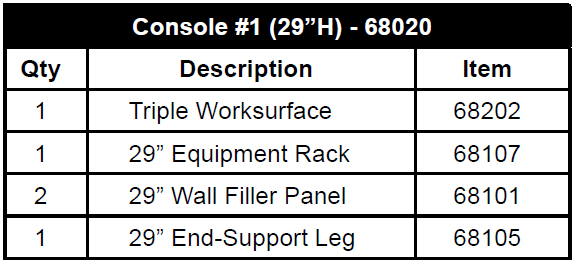

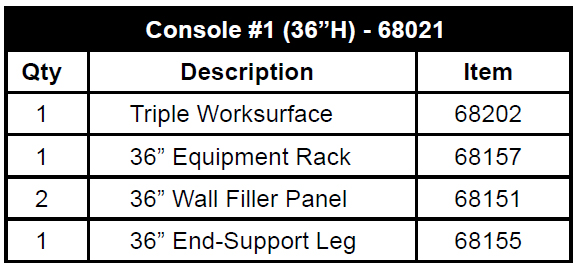

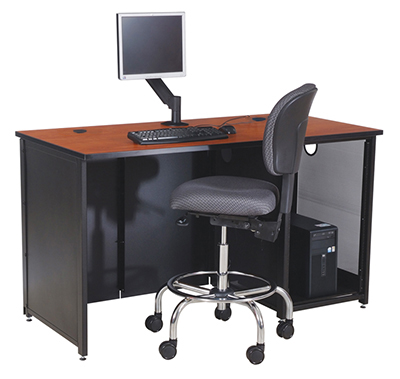

Console #1: 68020 (29"H), 68021 (36"H)
Unit below shown with optional:
Bottom Shelf for IMC Equipment Rack
Flat Panel Monitor Arm

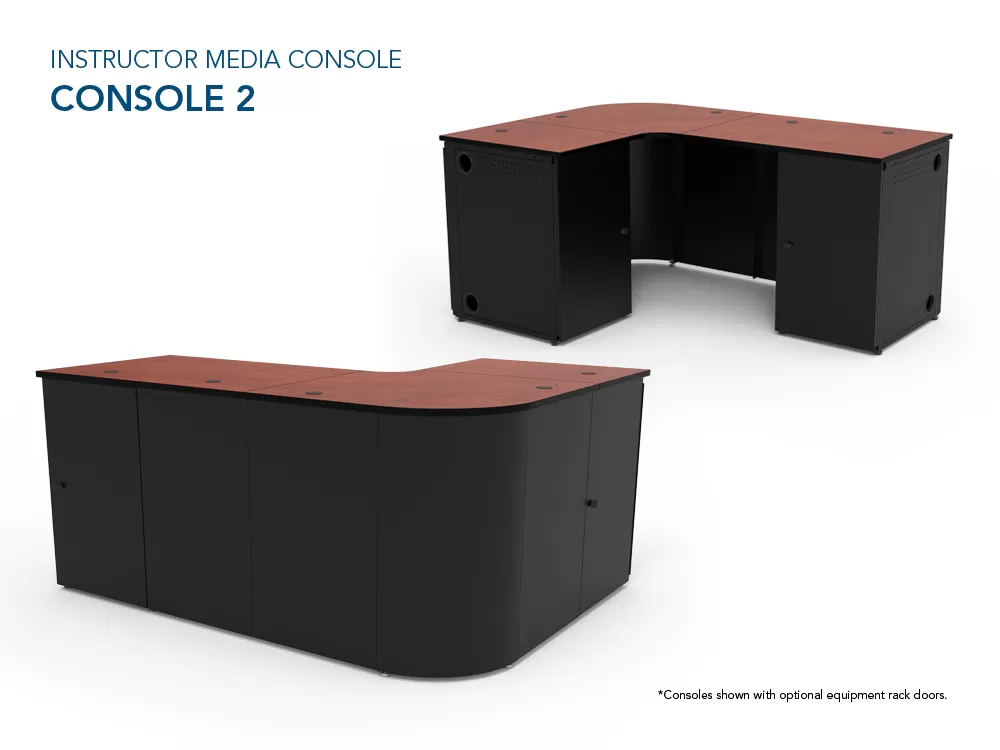

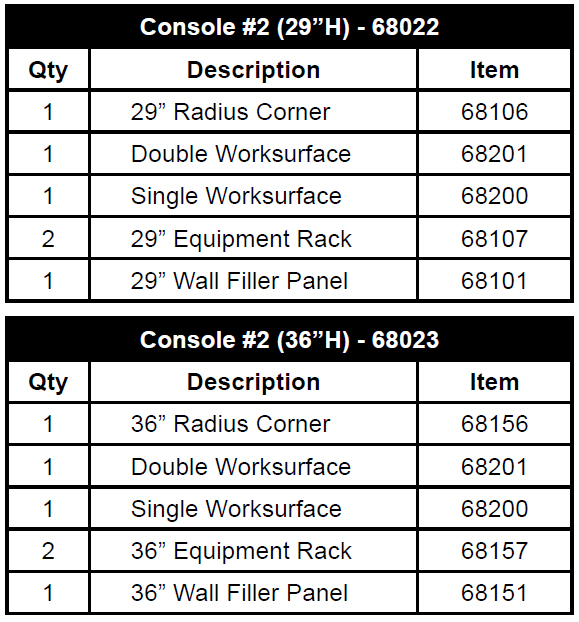

Console #2: 68022 (29"H), 68023 (36"H)
Unit below shown with optional:
Rack-Mount Accessories

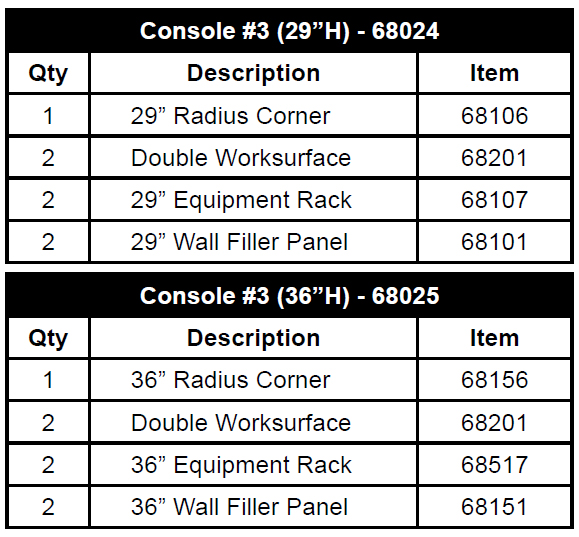

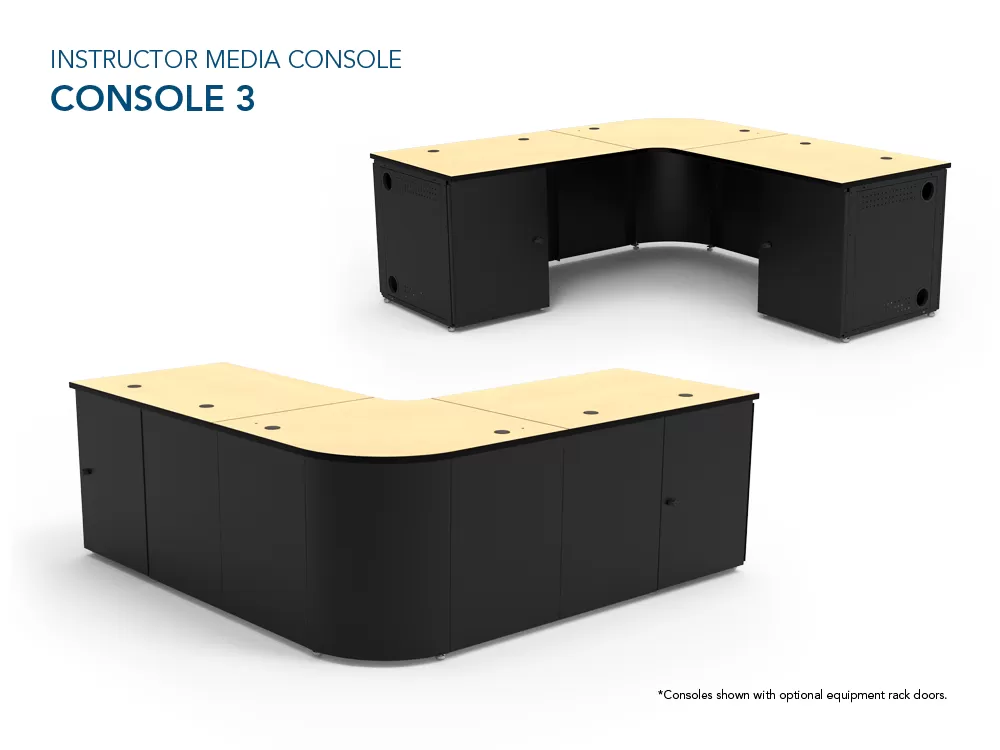

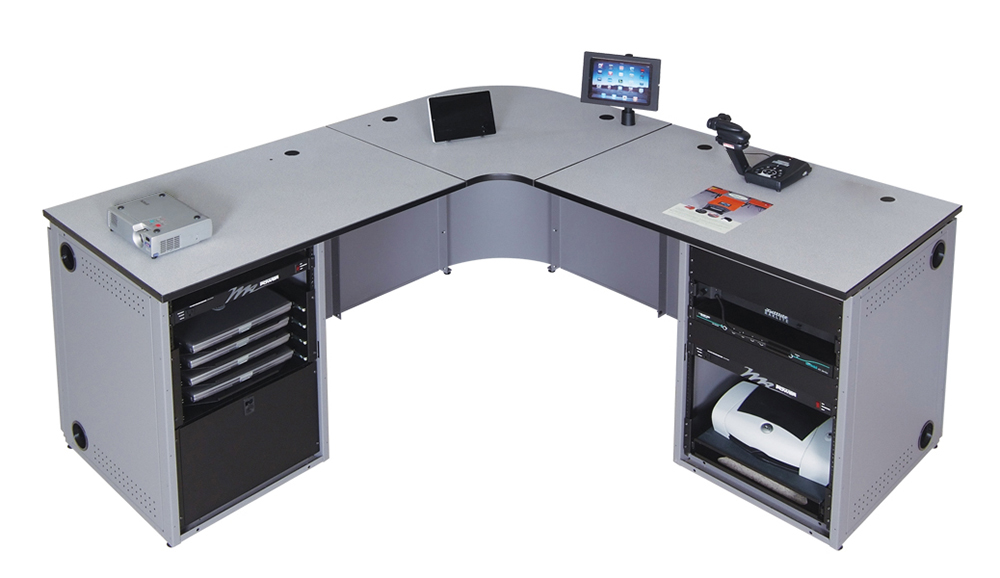

Console #3: 68024 (29"H), 68025 (36"H)
Unit below shown with optional:
Rack-Mount Accessories

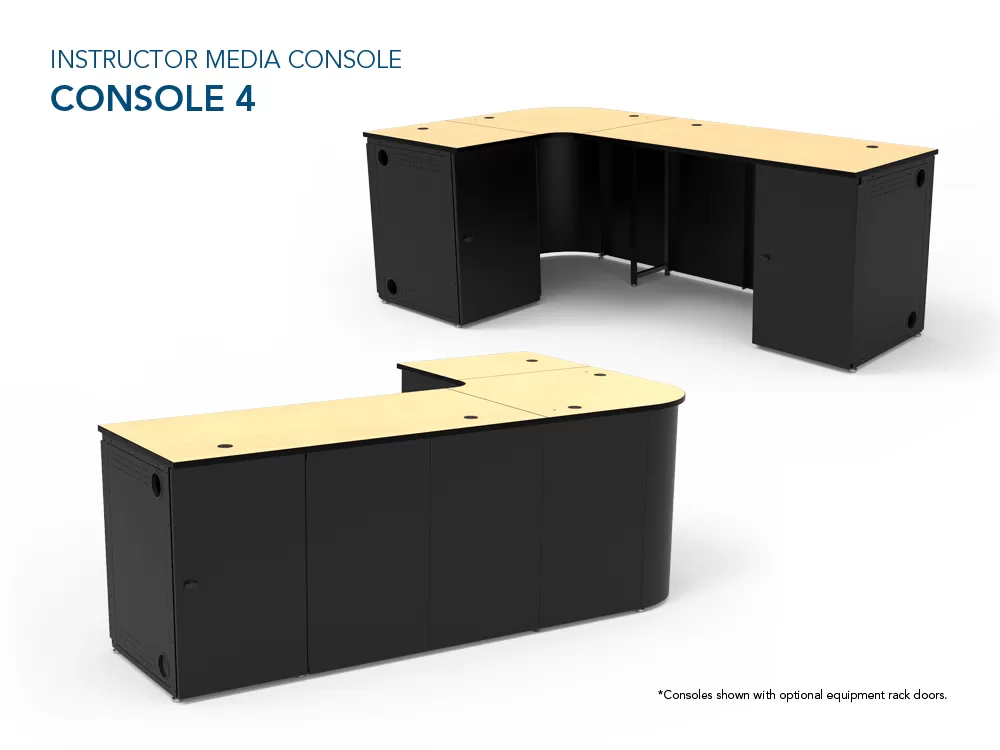

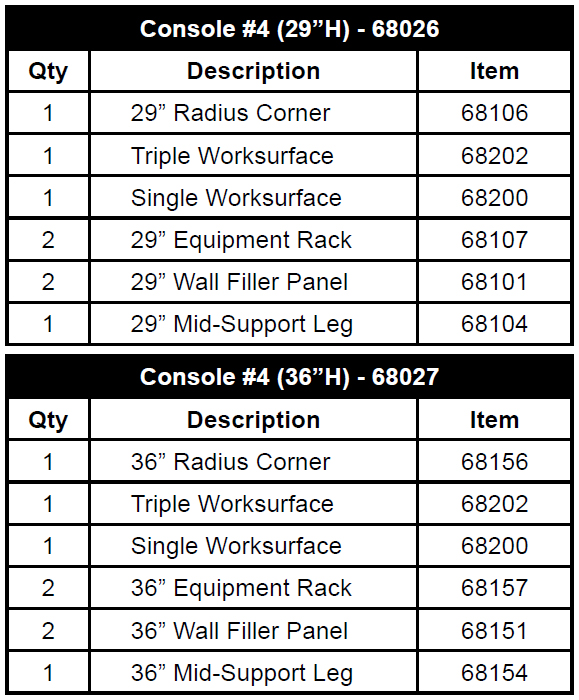

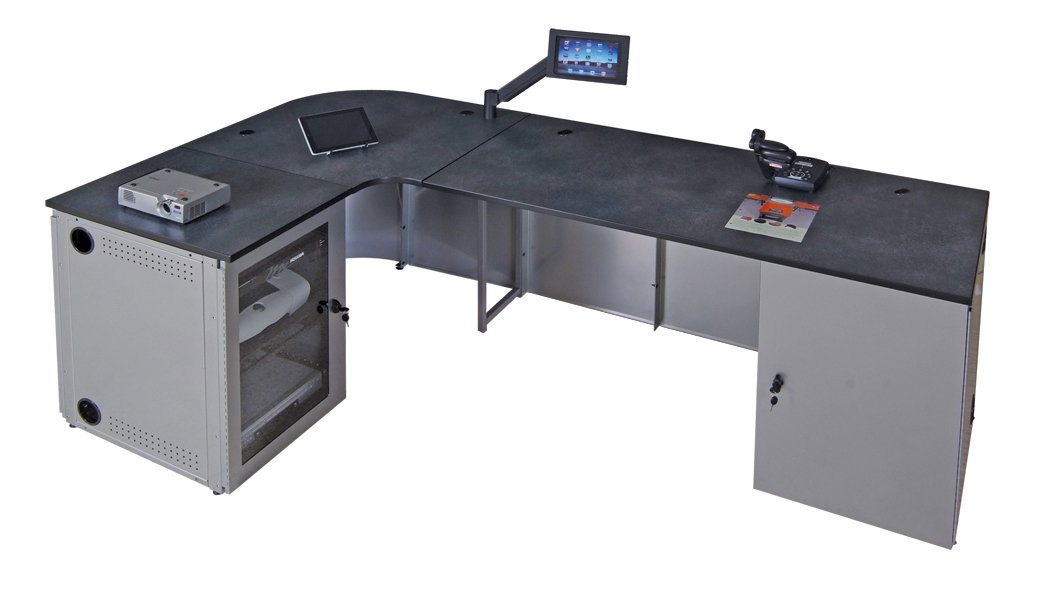

Console #4: 68026 (29"H), 68027 (36"H)
Unit below shown with optional:
Clear Acrylic Locking Door
Solid Locking Door
Flat Panel Monitor Arm

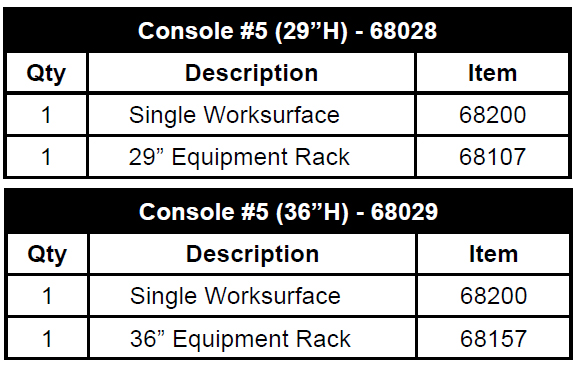

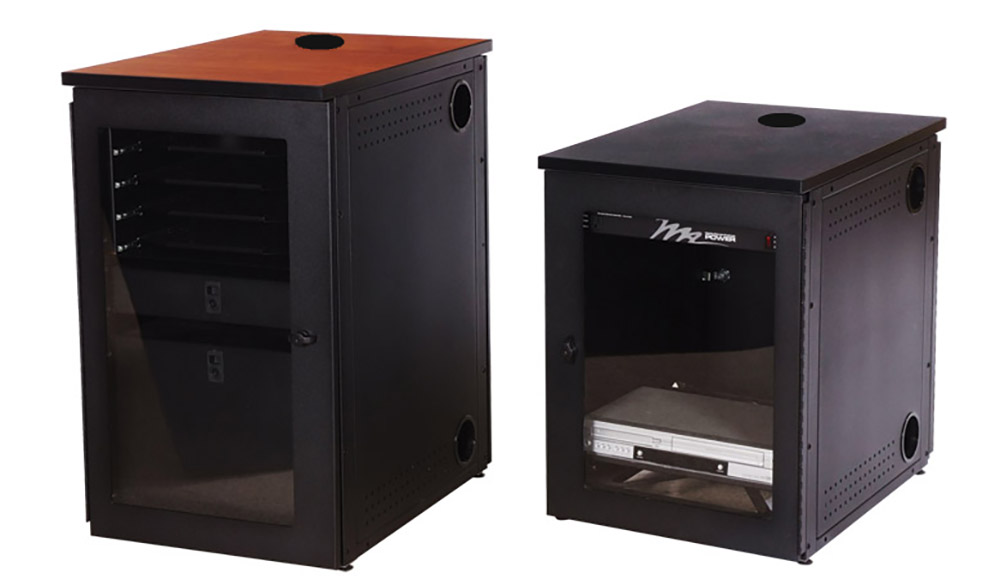

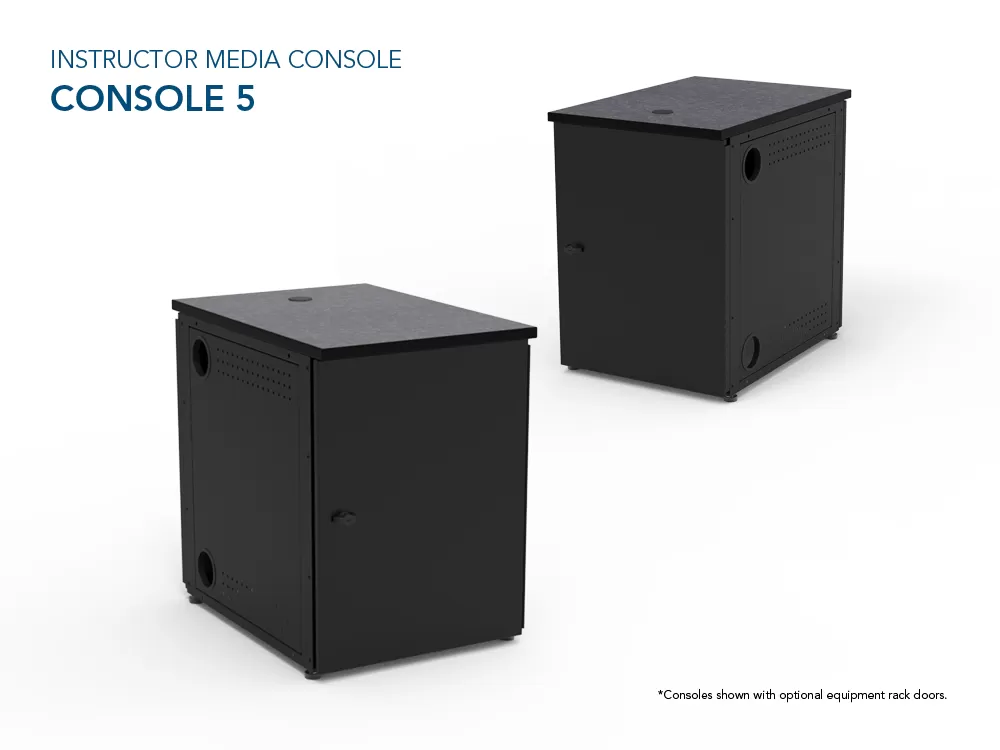

Console #5: 68028 (29"H), 68029 (36"H)
Console below shown with optional:
Clear Acrylic Locking Door

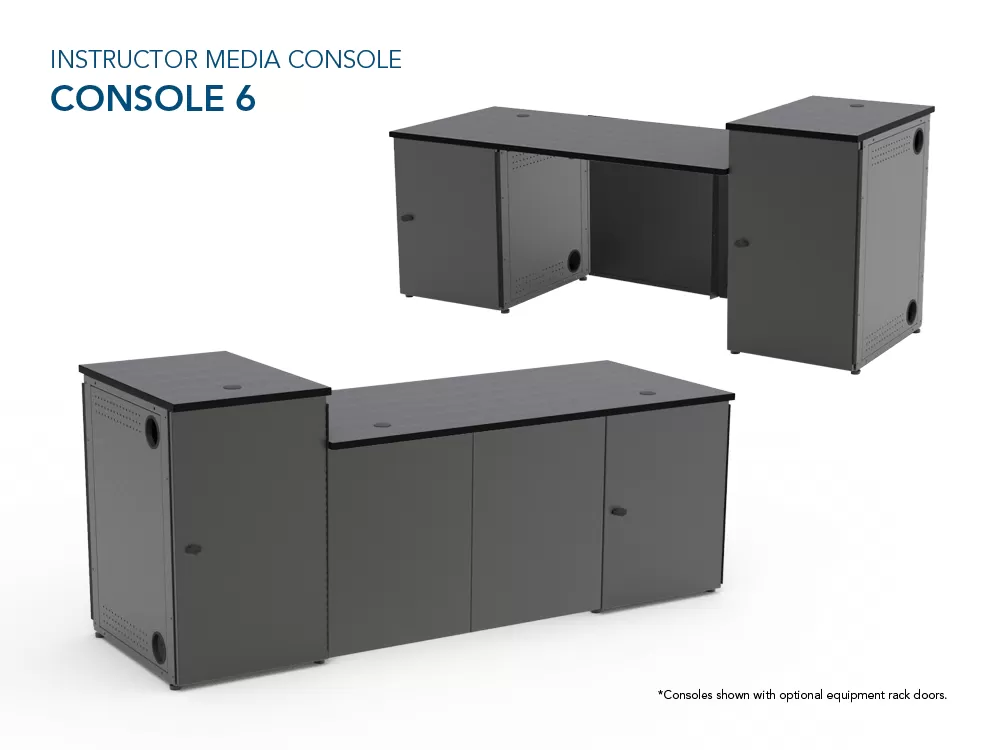

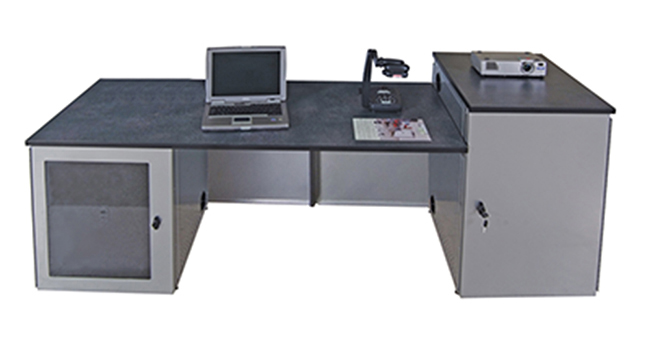

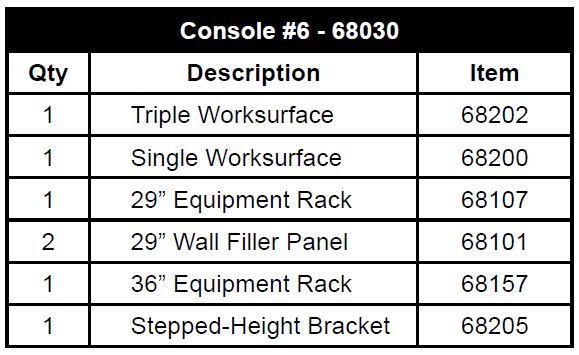

Console #6: 68030 (36"H)
Console below shown with optional:
Clear Acrylic Locking Door
Solid Locking Door

Item Numbers: See Above
  • Modular design and wide variety of optional accessories allow easy configuration for any environment
  • Scratch and impact-resistant high-pressure laminate top provides a durable, useful worksurface for instructors
  • Worksurface provides ample room for papers, laptops, projectors, and most peripherals
  • Equipment racks feature rack-rail equipment mounting
  • Lockable access doors provide security and quick-access to the front and rear of the console making it easy to maintain audio, video, and multi-media equipment
  • Power / Communication module cutout(s) in worksurfaces (cover included)
  • Side equipment rack grommet holes and worksurface grommets provide superior cord management
  • Ventilated equipment rack side panels keep equipment cool
  • Optional locking front doors can be mounted to swing from the left or right-hand side of the equipment rack
  • Leveling glides keep unit level on uneven surfaces
  • Durable powder coated steel chassis provides a long-lasting finish
  • SCS Indoor Advantage Certified; meets or exceeds applicable ANSI-BIFMA test standards
  • Warranted to be free of all defects in materials and workmanship for 10 years
  • Designed and assembled in Chippewa Falls, WI, USA
Accessories

97502 - Rack Mount Cantilever Shelf 3RU
97503 - Rack Mount Pull-Out Shelf 3RU
97504 - Rack Mount Cantilever Shelf 2RU
97505 - Rack Mount  Pull-Out Shelf Small
97506 - Rack Mount Fan-Double
97507 - Rack Mount Fan-Single
97510 - Rack Mount Blank 1RU
97511 - Rack Mount Blank 2RU
97512 - Rack Mount Blank 3RU
97513 - Rack Mount Blank 4RU
97517 - LT4 Rack Rail Storage Option
97522 - Rack Mount Drawer 3RU-w/Lock
97523 - Rack Mount Drawer 2RU-w/Lock

These items can be ordered separately to create your own modular IMC System

Product #      Description                      Dimensions                            Unit weight

   68106        29”H Radius Corner        36”W x 36”D x 29”H              130 lb
   68156        36"H Radius Corner        36”W x 36”D x 36”                 135 lb
   68200        Single Worksurface          21.1875”W x 30”D x 1”H       28 lb
   68201        Double Worksurface        42.375”W x 30”D x 1”H         46 lb
   68202        Triple Worksurface           63.5625”W x 30”D x 1”H       65 lb
   68107        29” Equipment Rack        21.1875”W x 30”D x 29”H     50 lb
   68157        36” Equipment Rack        21.1875”W x 30”D x 36”H     64 lb
   68101        29" Wall Filler Panel         21.1875"W x 1"D x 36"H       15 lb
   68151        36” Wall Filler Panel         21.1875”W x 1”D x 36”H       18 lb
   68105        29” End-Support Leg       1”W x 30”D x 29”H                  16 lb
   68155        36” End-Support Leg       1”W x 30”D x 36”H                  20 lb
   68104        29” Mid-Support Leg       1”W x 24”D x 21”H                    9 lb
   68154        36" Mid-Support Leg       1"W x 24"D x 28"H                  11 lb

Click here to view additional accessories
  • Worksurface height: 29”H or 36”H
  • Radius corner worksurface: 36.047”W x 36.047”D
  • Single Worksurface: 21.1875”W x 30”D
  • Double Worksurface: 42.375”W x 30”D
  • Triple Worksurface: 63.5625”W x 30”D
  • Rack units available:
14RU (29”H Equipment Rack)
18RU (36”H Equipment Rack)

See Product Spec Document For More Detailed Information.
